RASExpress User Guide

218 CommPlete Communications Server

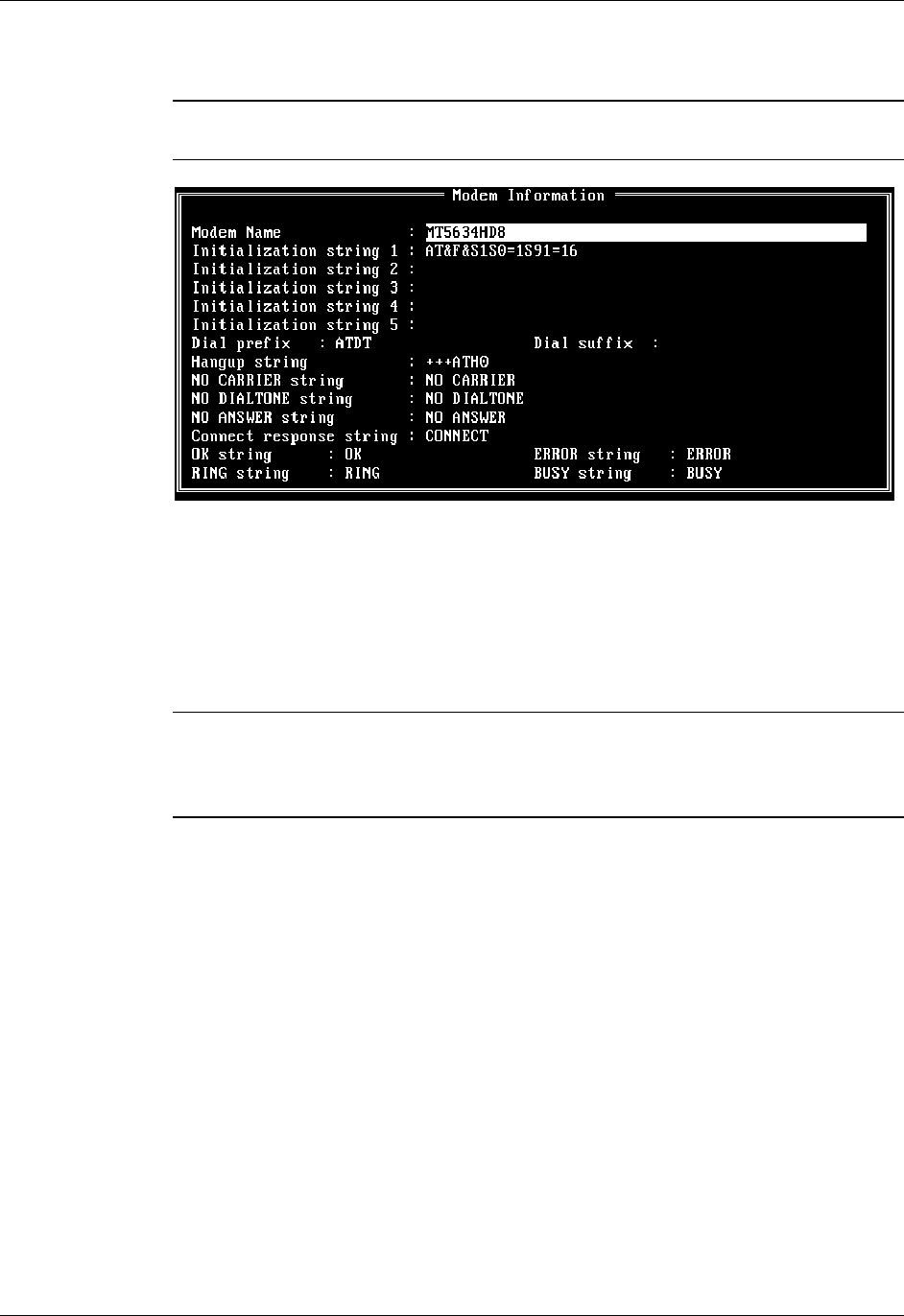

Select the modem that you want to configure and press ENTER. The Modem

Information window appears with the following options.

Caution: This section is included only for completeness. Do not change the modem

defaults that were set when RASExpress was installed on your RASCard.

Modem Name

This field shows the model name of the modem. Enter a new modem name only if it

is not listed in the List of Modems window.

Initializing String 1–5

These fields display the initialization string or strings used to configure the modem

when power is applied or the modem is reset.

Caution: Changing preconfigured modem strings is not recommended. If you want

to use a custom initialization string, create and name a new modem configuration.

Then copy information from one of the listed modems and modify the string as

required.

Dial Prefix

This field displays the dial prefix, which is automatically sent to the modem before

the phone number. The default prefix is the tone dialing command ATDT.

Dial Suffix

This field displays the dial suffix, which is automatically sent to the modem after the

phone number. This field is normally empty.

Hangup String

This field displays the string used to end a call.

NO CARRIER string, NO DIALTONE string, NO ANSWER string, Connect

Response string, OK string, ERROR string, RING string, BUSY string

These fields display the modem’s result codes, which are used by RASExpress to

monitor calls. They should be spelled exactly the same as the modem sends them. By

default, these fields are set for verbose responses. If your modem is set for terse

responses, refer to the modem’s owner’s manual for information about the responses.
