4 Browser Management
CommPlete Communications Server 103
ISI Setup
Use these pages to configure the ISI (Intelligent Serial Interface) circuits of a T1
RASExpress server. When you are done, click Submit to save the information and
return to the Configuration of Server menu or click Reset to cancel your changes.

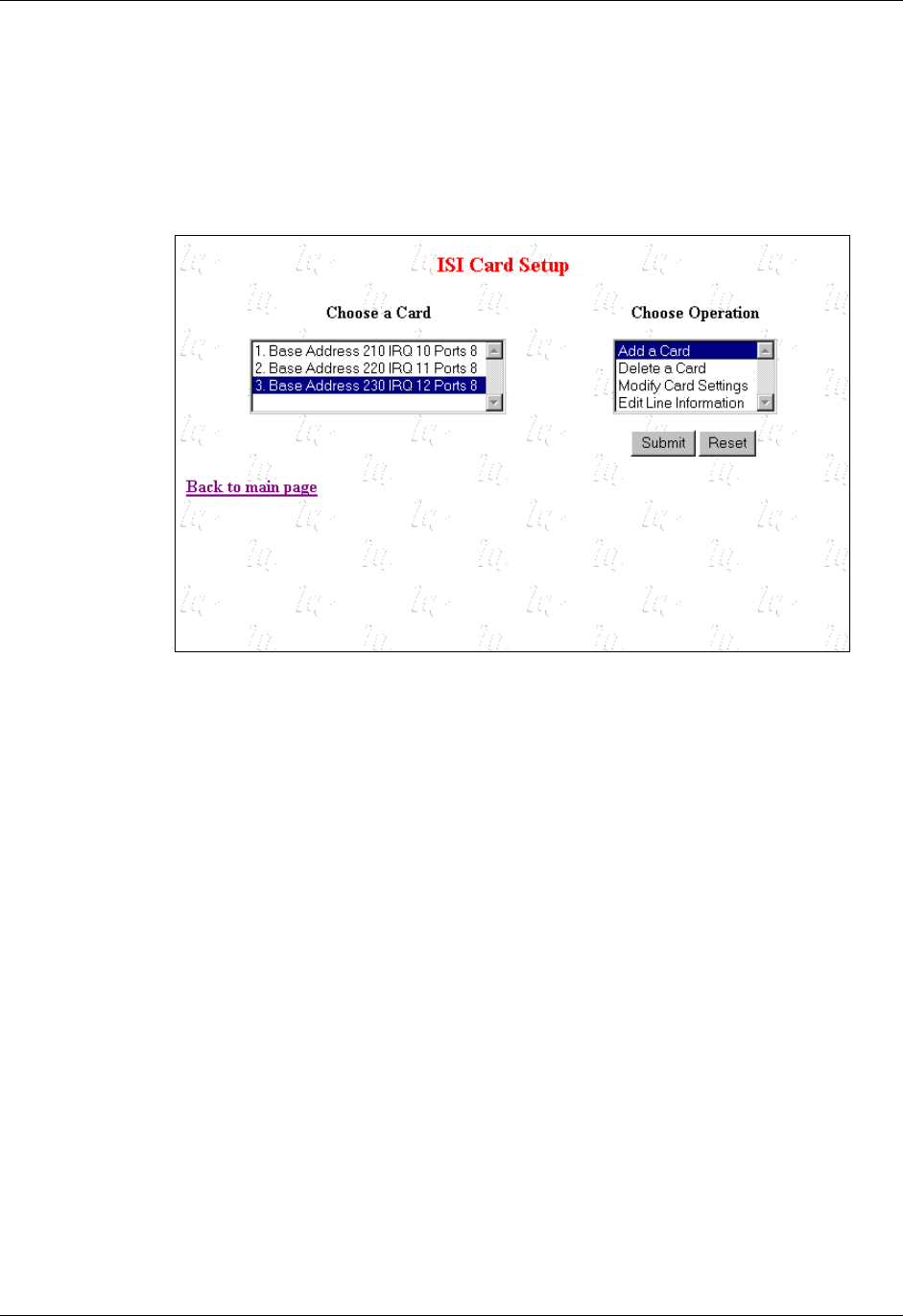

ISI Card Setup
To configure an ISI, or modem, card, select the card from the Choose a Card list,
select the action you want to perform from the Choose Operation list, and click
Submit. The Choose a Card list identifies cards by number, base address, IRQ
number, and number of ports. Depending on the action you select, one of several
configuration pages appears.
