4 Browser Management
CommPlete Communications Server 125

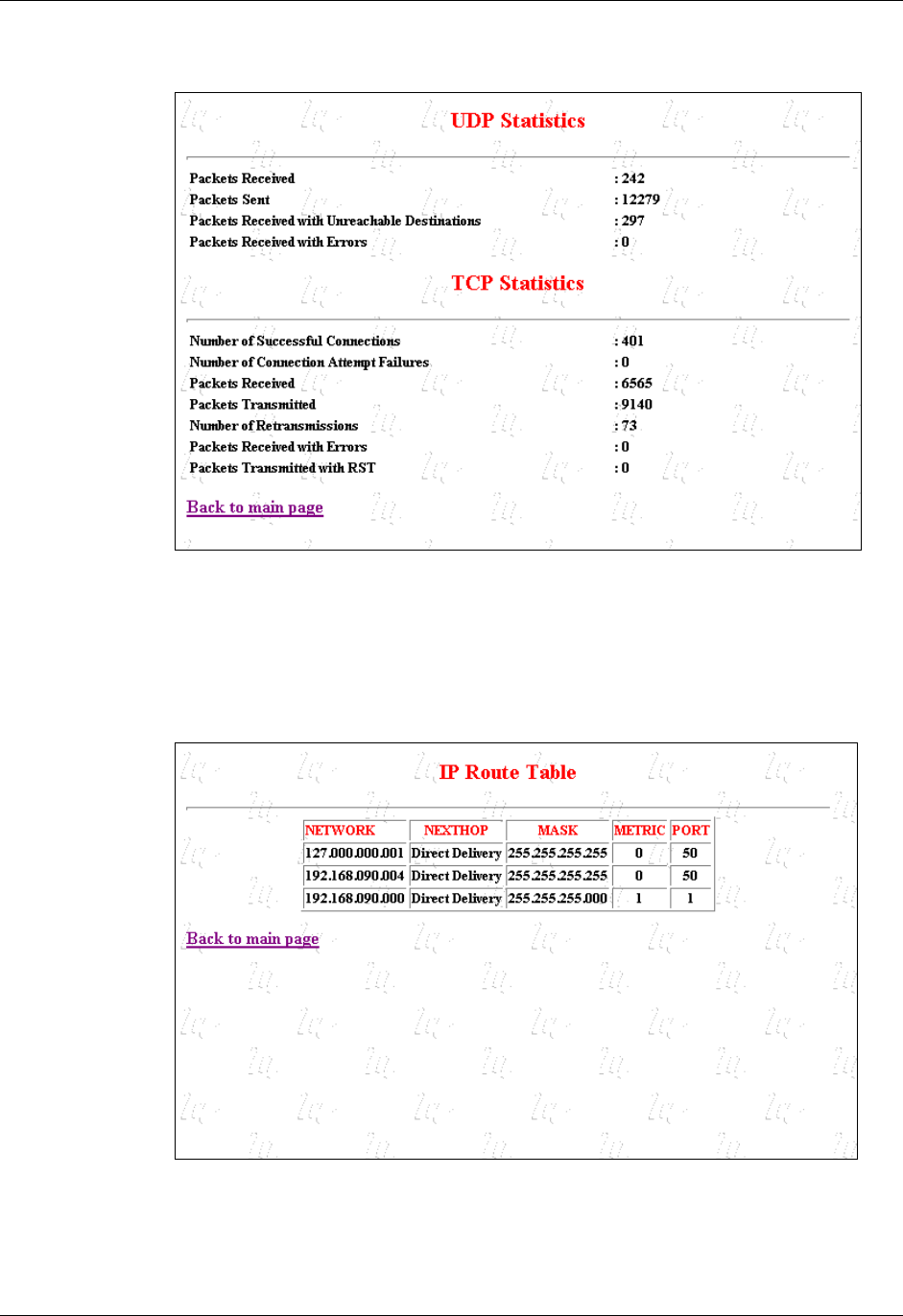

TCP/UDP Statistics
The UDP / TCP Statistics page displays UDP (User Datagram Protocol) and TCP
(Transmission Control Protocol) statistics since the RASExpress server was last
started.
IP Route Table
The IP Route Table shows IP routing information for the RASExpress server’s router,
including the network address, forwarding address, subnet mask, metric (hop count),
and the port number through which the IP address can be reached.
