146

GS10/GS15, Pin Assignments and Sockets

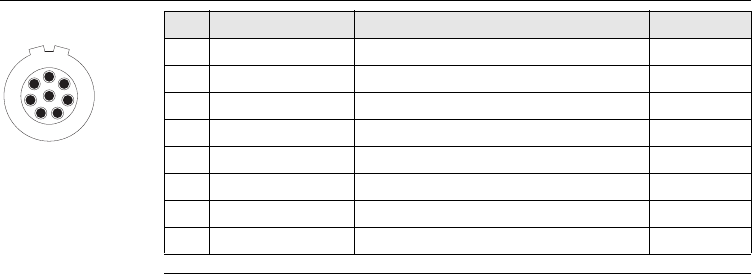

Pin assignments

for port P2

1

7

6

8

5

4

3

2

PIN_003

Pin Signal Name Function Direction

1 RTS RS232, ready to send Out

2 CTS RS232, clear to send In

3 GND Signal ground -

4 RxD RS232, receive data In

5 TxD RS232, transmit data Out

6 ID Identification pin In

7 GPIO RS232, configurable function In or out

8 +12 V 12 V power supply out Out
