Chapter 6 – Managing the RouteFinder Using a Web Browser

Multi-Tech Systems, Inc. RF550VPN User Guide 53

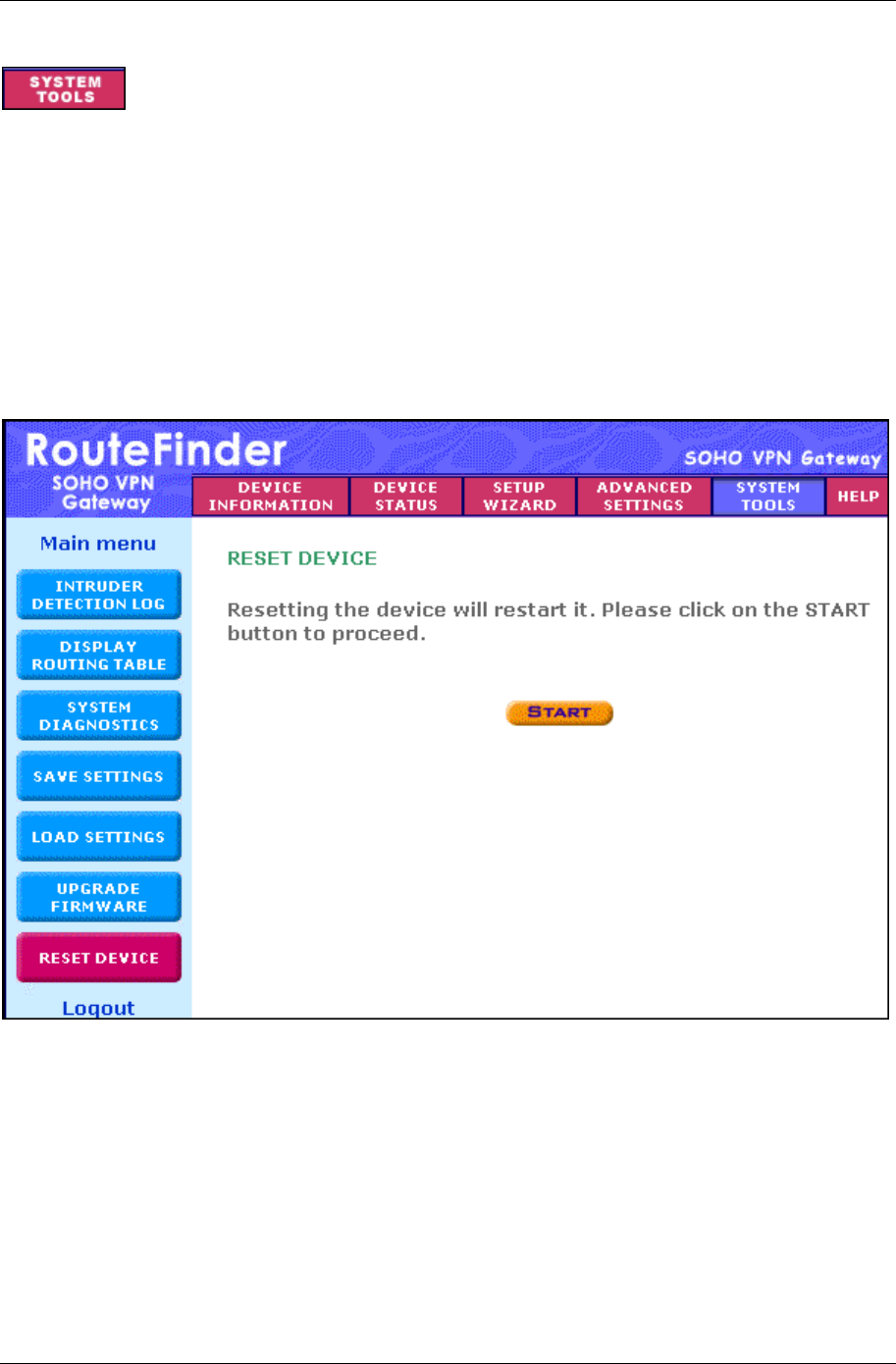

– Reset Device

To access this screen, click the Reset Device button from the System Tools screen. The Reset Device

screen displays.

Resetting the device will restart it.

Click on the

Start button to reset the device. A warning message displays before the reset process

starts.

Note: Another way to reset the device is to push the reset button on the back panel of the RouteFinder

until the serial LEDs blink, and then release the reset button.
