Chapter 6 – Managing the RouteFinder Using a Web Browser

Multi-Tech Systems, Inc. RF550VPN User Guide 50

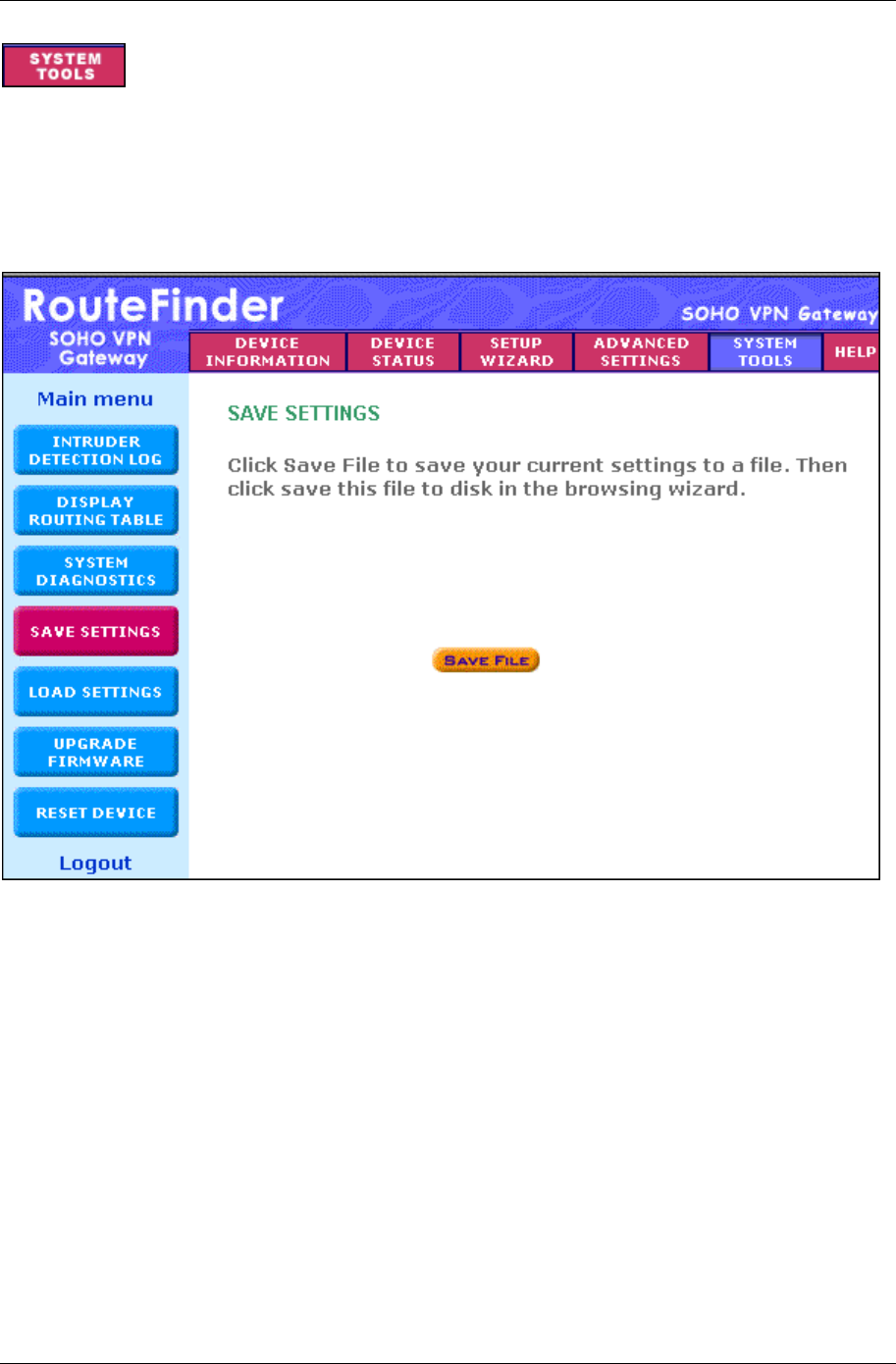

– Save Settings to a File

Use this screen to save your configuration settings to a file. This will provide a backup of your settings

in case, for some reason, you have to reset your RF550VPN.

1. Click the

Save File button.

2. Then click

Save This File to Disk in the browsing wizard.
