Chapter 3 – Configuring the PC

Multi-Tech Systems, Inc. RF550VPN User Guide 17

If Your Operating System Is Windows 2000/XP

1. Click Start | Settings | Control Panel. Double-click the Network and Dial-Up Connections icon.

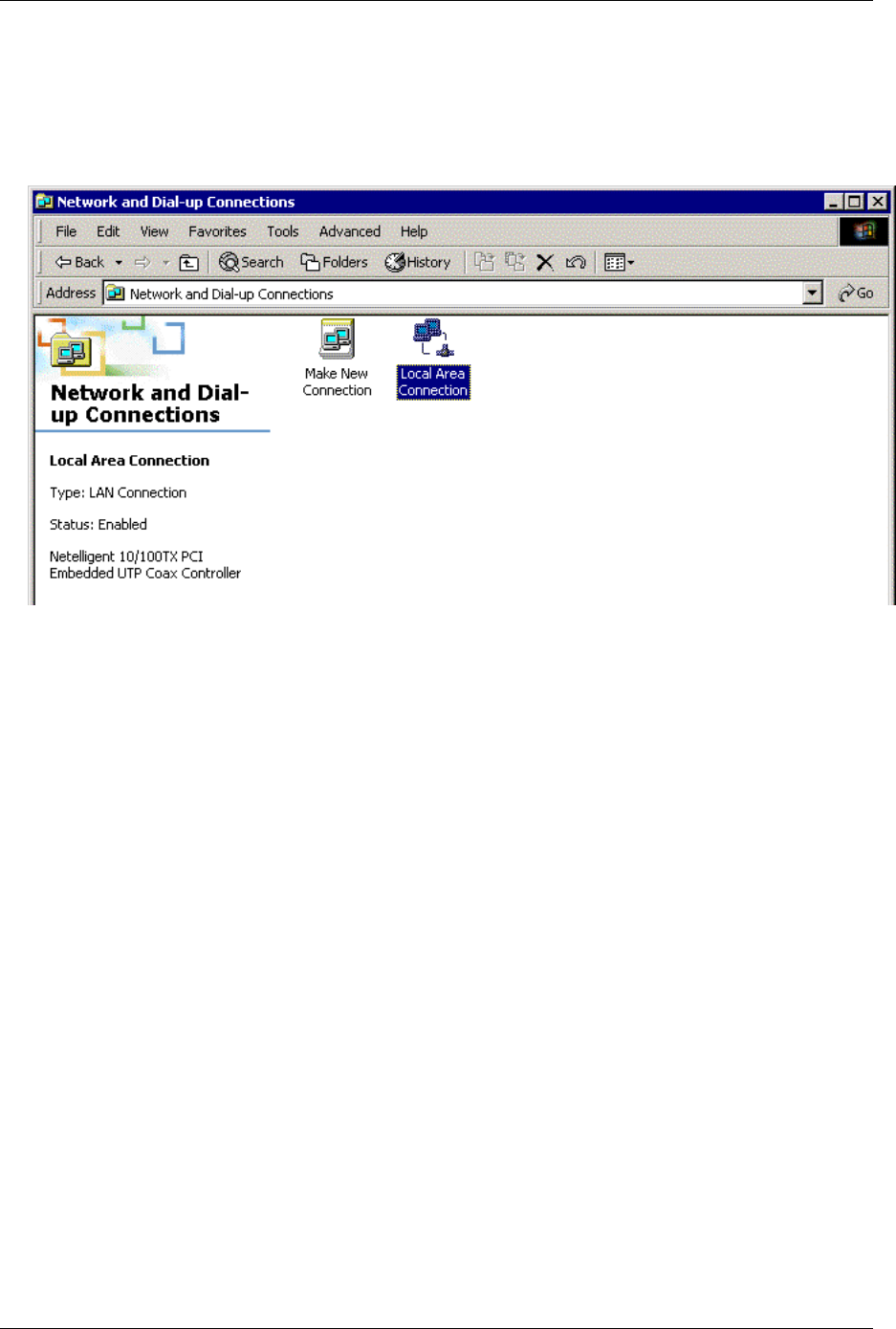

2. The

Network and Dial-Up Connections screen displays. Right-click the Local Area Connection

icon and choose Properties.
