Chapter 11 – SocketWireless Wi-Fi (MT800SWM)

Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342F) 143

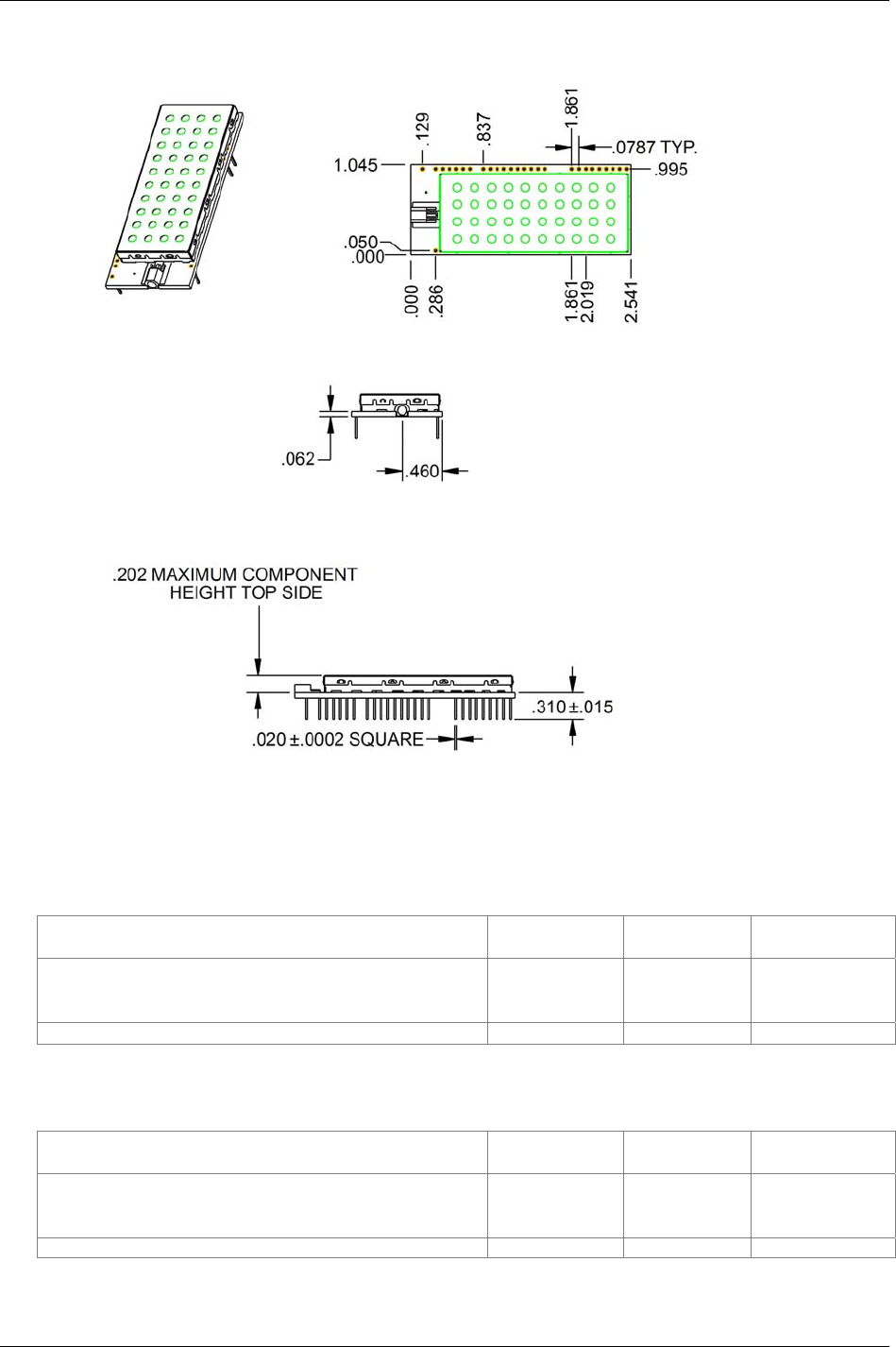

Mechanical Dimensions

Electrical Characteristics

3.3V Serial

3.3VDC Characteristics (TA = -40 °C to 85 °C; VDD = 3.3V ± 0.3V) VDDMAX = 3.6V

Digital Inputs

–DTR (40), –TXD (35), –RTS (33), –RESET (24)

Input High

Min 2.52V

Input Low

Max 0.8V

Digital Outputs

–DCD (39), –CTS (38), –DSR (37), –RI (36),

–RXD (34)

Output High

Min. 2.3V

Output Low

Max 0.4V

Current Drive

2mA

Digital Input Capacitance

5 pF

5V Serial

5VDC Characteristics (TA = 0 °C to 50 °C; VDD = 5V ± 0.25V) VDDMAX = 5.25V

Digital Inputs

–DTR (40), –TXD (35), –RTS (33), –RESET (24)

Input High

Min 2.52V

Input Low

Max .0.8V

Digital Outputs

–DCD (39), –CTS (38), –DSR (37), –RI (36),

–RXD (34)

Output High

Min. 2.3V

Output Low

Max 0.4V

Current Drive

2mA

Digital Input Capacitance

5 pF

Note: All digital inputs/outputs are 3.3V only.
