Chapter 6 – SocketEthernet IP (MTXCSEM, MTXCSEM-L-RAS & MT100SEM)

Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342F) 105

SocketModem Configuration

Serial Configuration

The SocketEthernet IP uses a 22-pin interface to provide an on-board Ethernet media access controller, an

Ethernet physical layer (without the RJ-45 jack), an LED driver for Ethernet monitoring, and a serial interface.

Note: The shaded, bolded pins are SocketEthernet IP active pins.

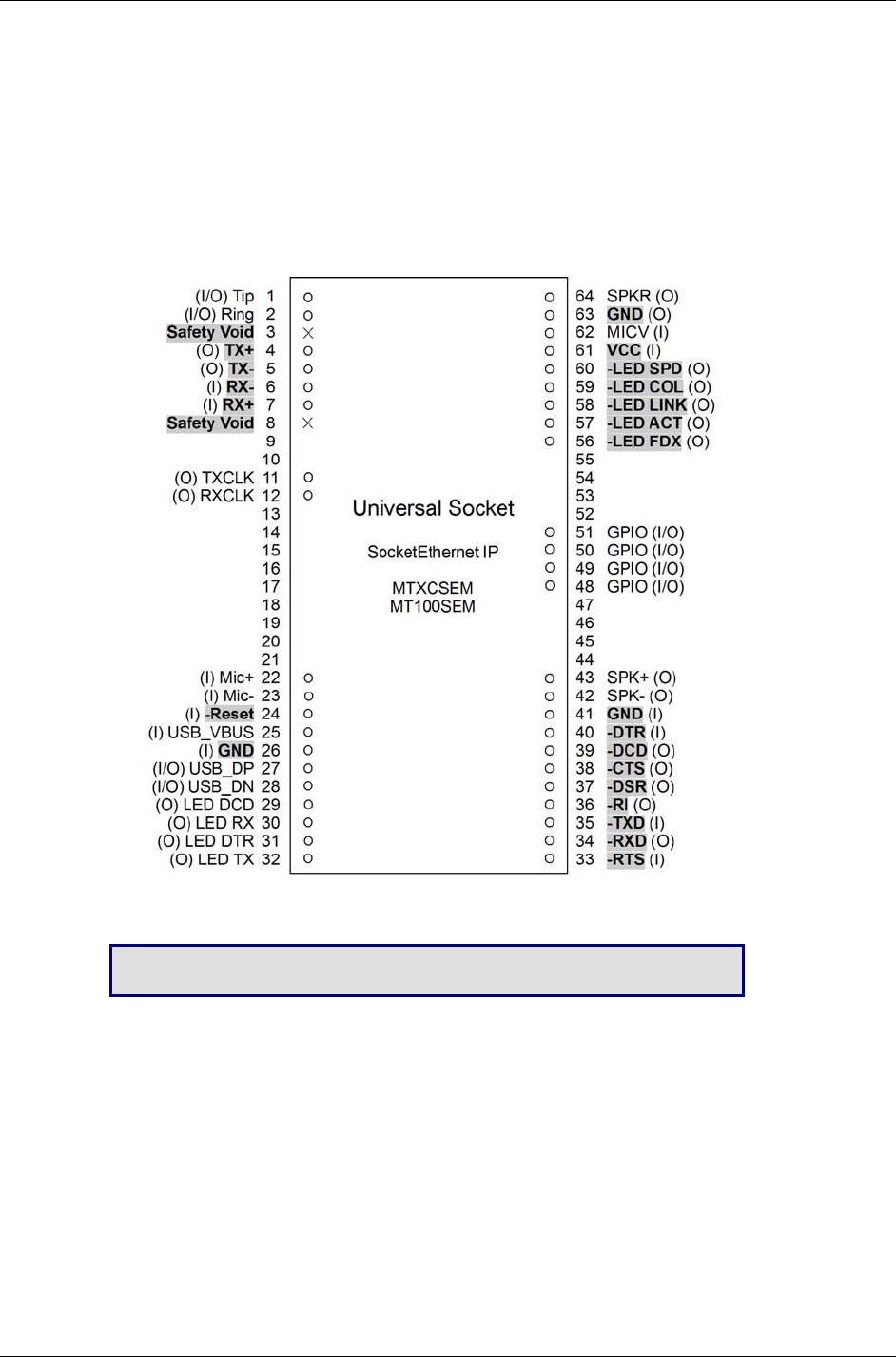

Top View

SocketEthernet IP Pinout

Note: Pin 6 is RX- for the SocketEthernet IP. For ISDN, Pin 6 is RX+.

Pin 7 is RX+ for the SocketEthernet IP. For ISDN, Pin 7 is RX-.

For pin descriptions, see the Universal Pinout Descriptions in Chapter 1.
