MultiAccess ACS

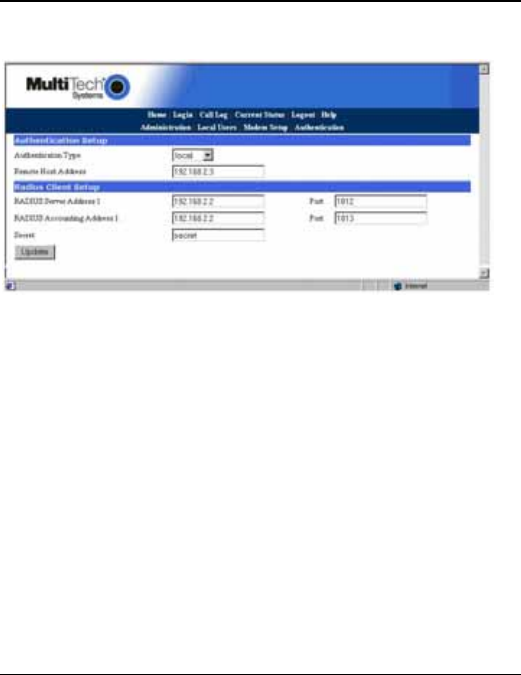

Radius Client Setup points to the Radius Server when the

Authentication is Radius.

Authentication

1. In the Authentication Type, if your database for user

credientals resides in the Local User Database on the

MultiAccess, then accept the default – local. If your user

database resides on the Radius Server outside the

MA100-M, then click on the down arrow and chose

radius.

2. For RAS calls, enter a static IP Address in the Remote

Host Address window which will be assigned to the dial-in

user. This Remote Host Address has to match the network

number that the MultiAccess is on.

RADIUS

1. If you are setting up MultiAccess to use Radius

authentication, then enter the IP address of the primary

RADIUS Server in the RADIUS Server Address 1 window.
