Chapter 4 - Web Browser Configuration and Management

Multi-Tech Systems, Inc. RouteFinder RF802EW User Guide

System Tools

Use the System Tools screen to view the Intruder Detection Log, view the Routing Table,

and run a System Diagnosis.

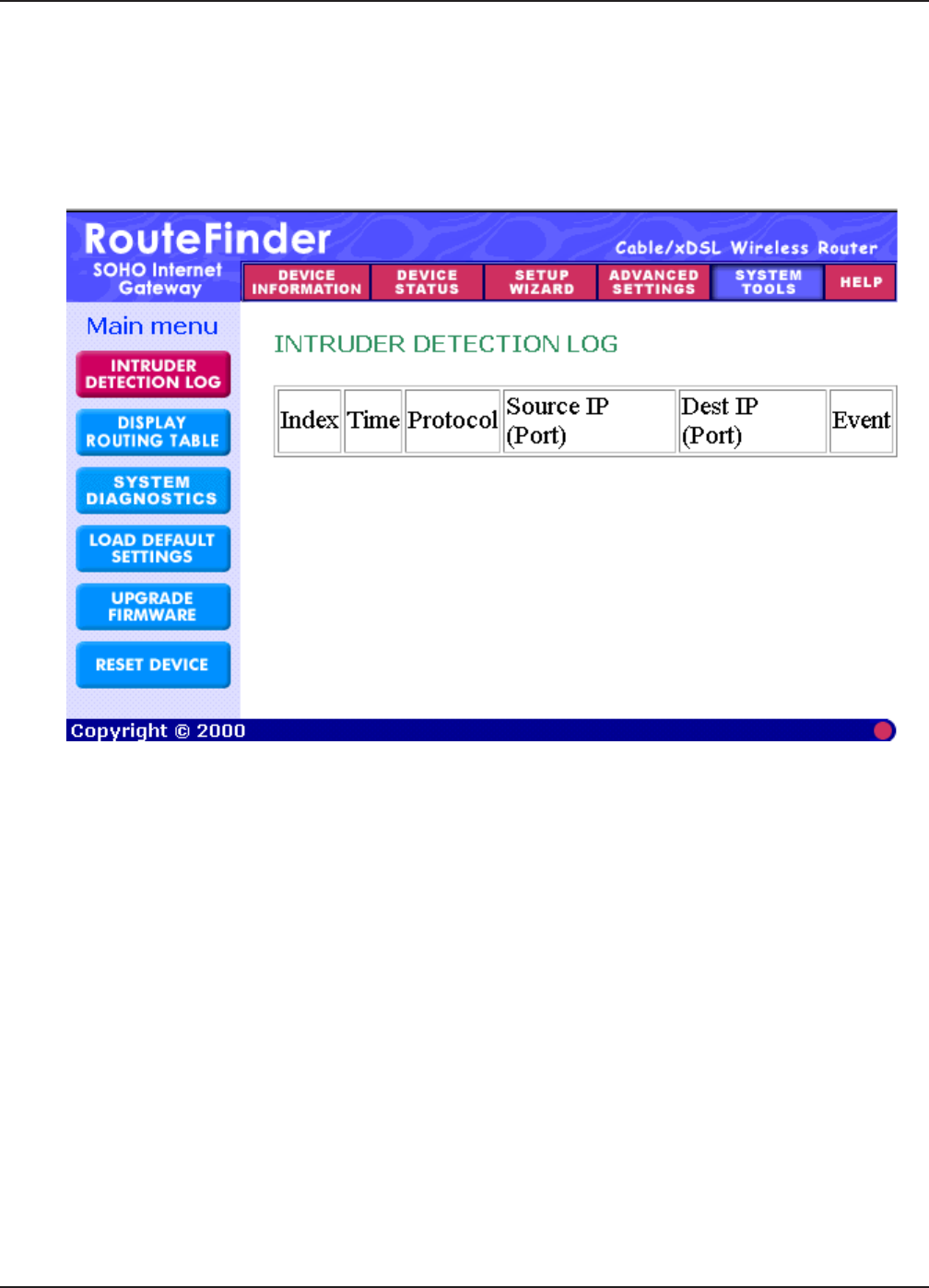

System Tools - Intruder Detection Log

The event messages show the possible hacker attacks that have occurred on your Internet

gateway. Up to 32 hacker attacks may be logged in this manner.
