Chapter 3 – Configuration

Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L) 15

Second Configuration Step – Using the Wizard

Setup

Using the Wizard Setup is a quick way to enter the basic configuration parameters to allow communication between the

LAN’s workstation(s) and the Internet as shown in the example below.

Important Note: An initial configuration must be completed for each type of RouteFinder functions: firewall configuration,

LAN-to-LAN configuration, a LAN-to-Remote Client configuration.

Note about License Agreements: It is suggested that you read the legal information and license agreements before

beginning the configuration. This information can be found in the RouteFinder User Guide on the RouteFinder CD.

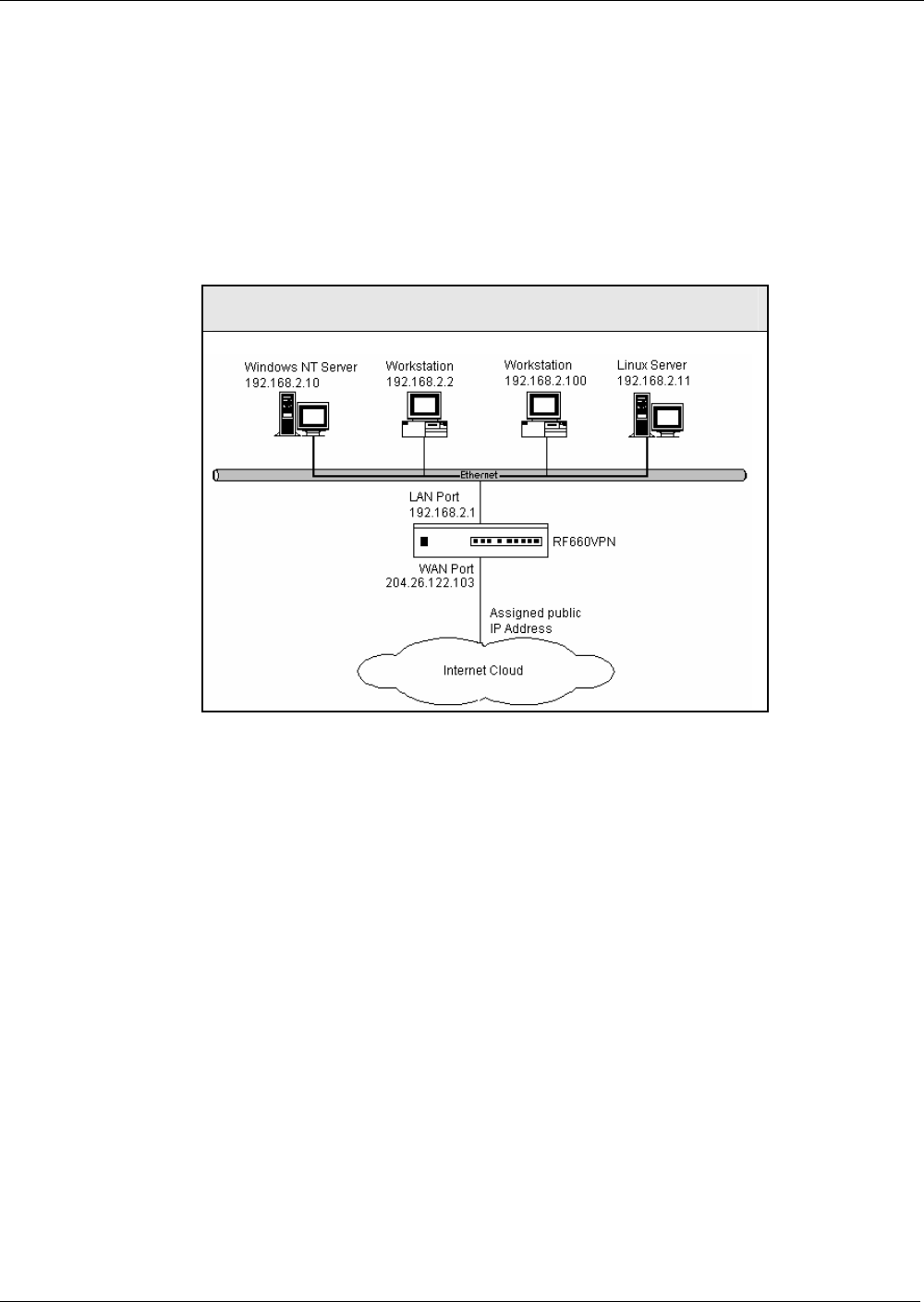

RouteFinder Initial Configuration

The addresses used in this example are entered through the Wizard Setup. See the screen example on the next page.
