Chapter 2 – Activation and Installation

Optional – Attach the Modem to a Flat Surface

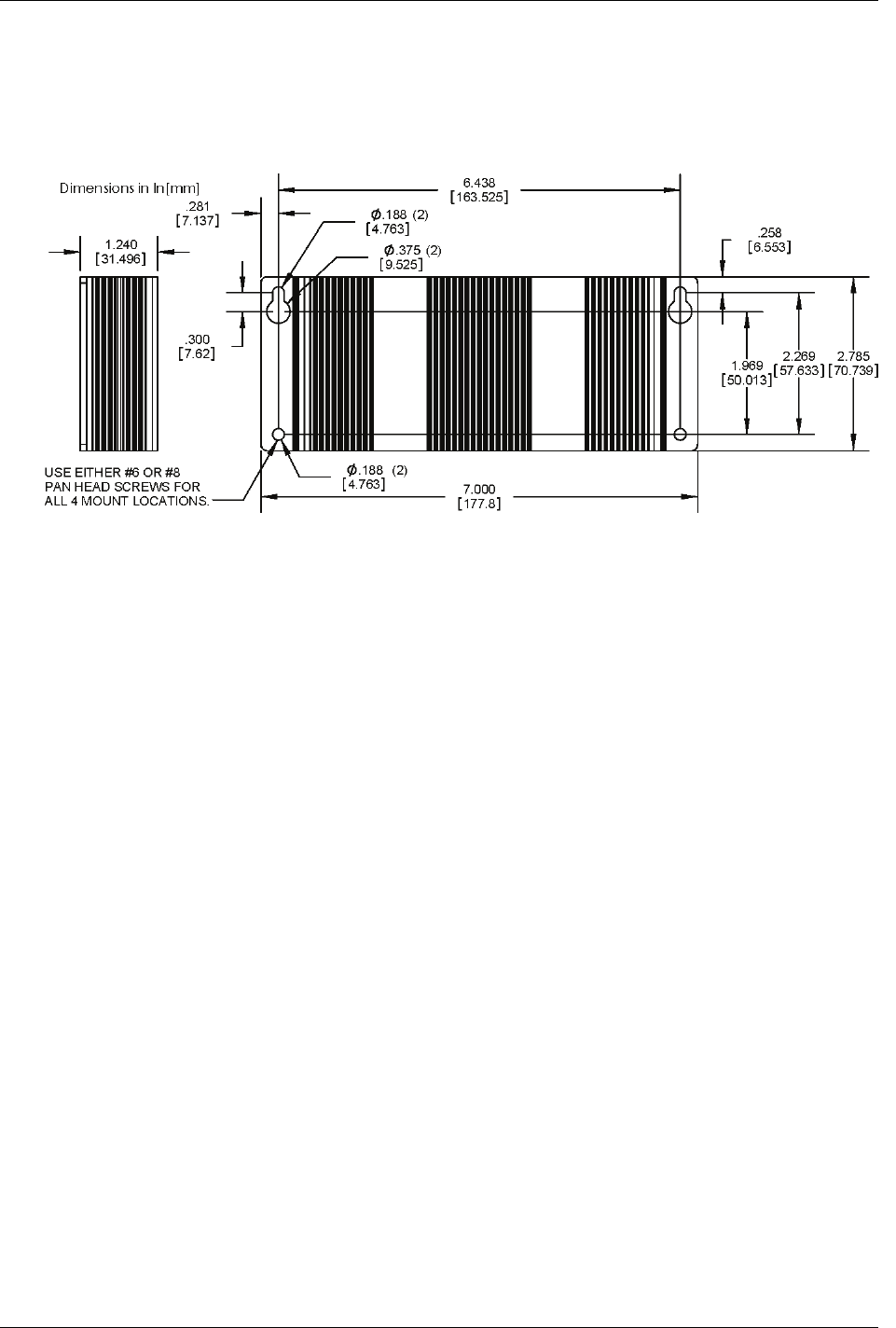

The modem can be panel mounted with screws spaced according to the measurement shown.

Note: Use either #4 or #6 pan head screws for all four mount locations.

Multi-Tech Systems, Inc. MultiConnect AW User Guide 12


