You may also use this cascading management function to change the

communication protocols within the same LAN. This way you can also

access a workstation from your managing station, even if the client only has

a network protocol driver installed, which you don′t have on your

workstation. In our example the network administrator is working at the

local Managing Station-1, which only has the NetBIOS protocol driver

installed. He or she now accesses Managing Station-2, which has the

NetBIOS and TCP/IP protocol drivers installed and active. Then the network

administrator uses the Remote System Manager function of that Managing

Station-2 to access the client via the TCP/IP protocol. Please see the

example below for details:

Managing Station-1 Managing Station-2 Client

|||

installed NetBIOS ------------> NetBIOS |

Protocols TCP/IP -----------> TCP/IP

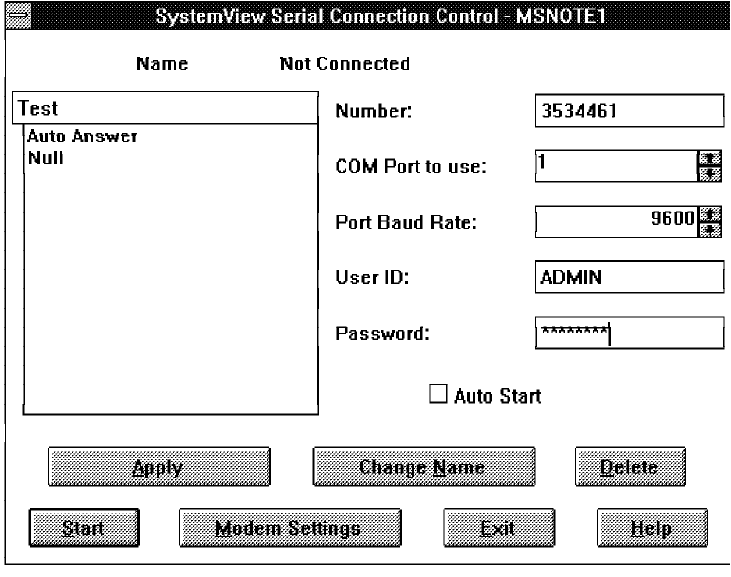

Figure 51. Serial Connection Control

The connection control is used to define all possible connection using the serial

link support of TME 10 NetFinity. In general we have two possibilities:

1. Running as a client, then defining a modem connection with Auto Answer.

2. Running as an active NetFinity Manager, then defining a modem connection

with a unique name.

•

Name

The name is used to identify the connection. Please specify a name that

might be logical to this connection, such as defining the name CHICAGO for

the connection to your outlet in Chicago.

Chapter 2. NT Systems Management Functions 37
